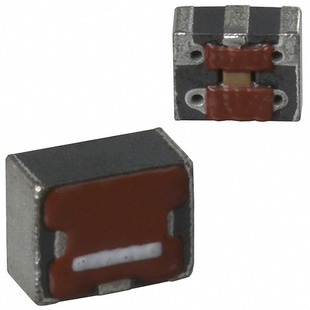

TDK Corporation
| Part Number | ACF321825-682-TD01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FILTER LC(T) SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 362881 pcs | Data sheet | ACF321825-682-TD01.pdf |
| Voltage - Rated | 20V | Values | - |
| Type | Low Pass | Technology | LC (T-Type) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Series | ACF |
| Resistance - Channel (Ohms) | 0.15 | Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric), 3 PC Pad | Other Names | 445-2061-2 ACF321825-682 ACF321825-682-T ACF321825-682TD01 ACF321825-682TD01-ND ACF321825682TD01 |
| Operating Temperature | -25°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.079" (2.00mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 300mA 1210 (3225 Metric), 3 PC Pad | Current | 300mA |
| Center / Cutoff Frequency | - | Attenuation Value | 25dB @ 22MHz ~ 75MHz |
| Applications | Data Lines for Mobile Devices |
