Sunon
| Part Number | UF385-100 | Manufacturer | Sunon |
|---|---|---|---|

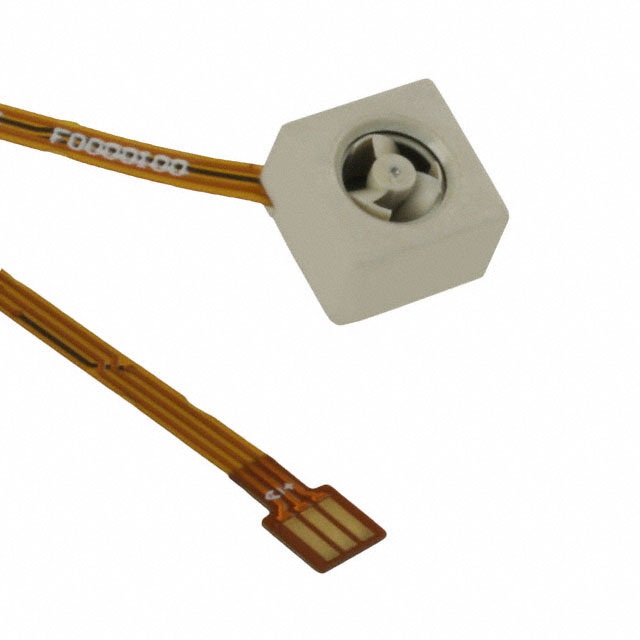

| Description | FAN AXIAL 8X5MM VAPO 3VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1790 pcs | Data sheet | 1.UF385-100.pdf2.UF385-100.pdf |
| Width | 5.00mm | Weight | 0.001 lb (0.45g) |
| Voltage Range | 2.2 ~ 3.5VDC | Voltage - Rated | 3VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.012 in H2O (3.0 Pa) |
| Size / Dimension | Square - 8mm L x 8mm H | Series | MagLev® UF, Mighty Mini |
| RPM | 17000 RPM | Power (Watts) | 200mW |
| Other Names | 259-1454 UF385-10 UF385-500 UF385100 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 17.1 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Thermoplastic | Material - Blade | Thermoplastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.049A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE | Air Flow | 0.010 CFM (0.0003m³/min) |
