Sunon
| Part Number | UB5U3-700 | Manufacturer | Sunon |
|---|---|---|---|

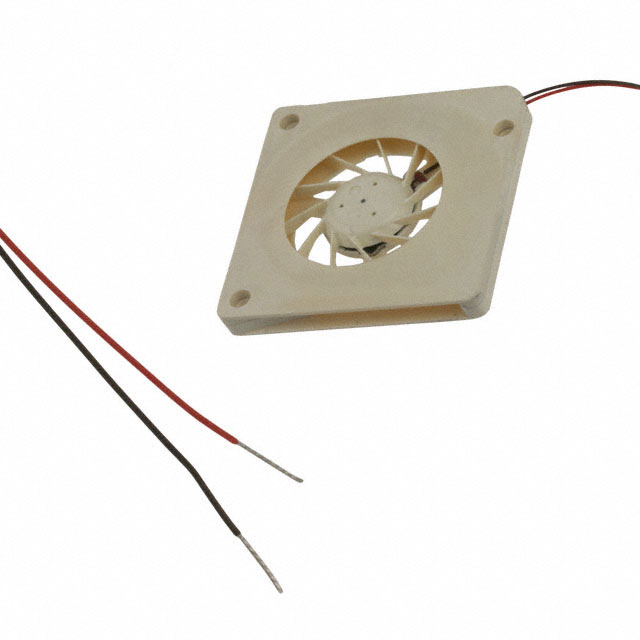

| Description | FAN BLOWER 30X3MM VAPO 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4534 pcs | Data sheet | 1.UB5U3-700.pdf2.UB5U3-700.pdf |
| Width | 3.00mm | Weight | 0.005 lb (2.27g) |
| Voltage Range | 2 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.354 in H2O (88.2 Pa) |
| Size / Dimension | Square - 30mm L x 30mm H | Series | MagLev® UB, Mighty Mini |
| RPM | 9500 RPM | Power (Watts) | 360mW |
| Other Names | 259-1531 Q5070585 UB5U3-700-ND UB5U3700 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 39.2 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Thermoplastic | Material - Blade | Thermoplastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | - | Fan Type | Blower |
| Current Rating | 0.072A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE | Air Flow | 0.630 CFM (0.018m³/min) |
