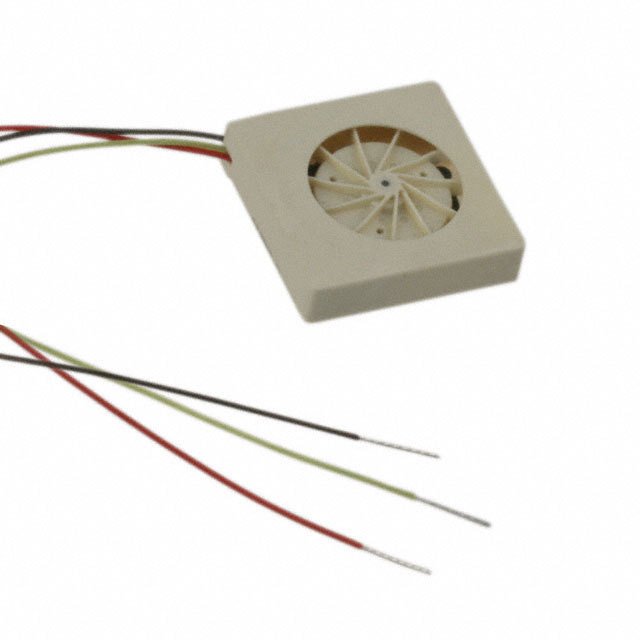

Part Number | UB3F3-500 | Manufacturer | Sunon |
---|---|---|---|
Description | FAN BLOWER 15X3MM VAPO 3VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4883 pcs | Data sheet | 1.UB3F3-500.pdf2.UB3F3-500.pdf |
Width | 3.00mm | Weight | 0.002 lb (0.91g) |
Voltage Range | 2 ~ 3.5VDC | Voltage - Rated | 3VDC |
Termination | 3 Wire Leads | Static Pressure | 0.136 in H2O (33.9 Pa) |
Size / Dimension | Square - 15mm L x 15mm H | Series | MagLev® UB, Mighty Mini |
RPM | 14000 RPM | Power (Watts) | 100mW |
Other Names | 259-1534 Q4039848A UB3F3-100 UB3F3-100-ND UB3F3-500-ND UB3F3500 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 34.1 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Thermoplastic | Material - Blade | Thermoplastic |
Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
Features | Speed Sensor (Tach) | Fan Type | Blower |
Current Rating | 0.038A | Bearing Type | Vapo-Bearing™ |
Approvals | CE | Air Flow | 0.160 CFM (0.004m³/min) |
