Sunon

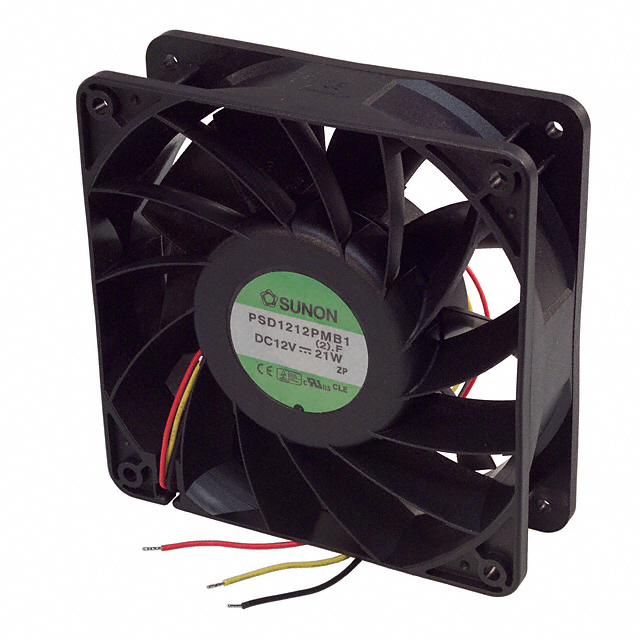

| Part Number | PSD1212PMB1 (2) F | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5601 pcs | Data sheet | |
| Width | 38.00mm | Weight | 0.882 lb (400.07g) |
| Voltage Range | 10.2 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.700 in H2O (174.4 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | PSD |
| RPM | 4000 RPM | Power (Watts) | 21.00W |
| Other Names | 259-1263 D12COPMB14F--RA PSD1212PMB1(2) F PSD1212PMB1(2)F PSD1212PMB12F |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 63.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 1.7A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 190.0 CFM (5.32m³/min) |
