Sunon
| Part Number | PMD2406PTVX-A U.GN | Manufacturer | Sunon |
|---|---|---|---|

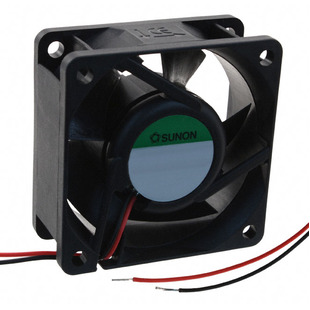

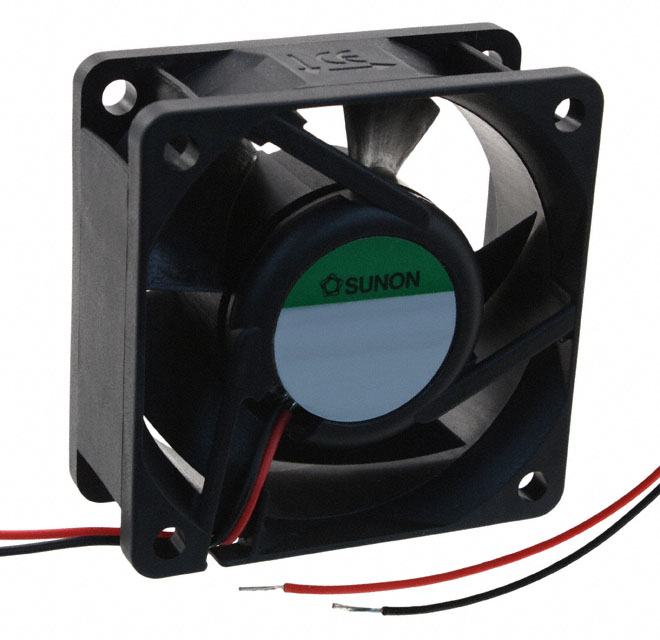

| Description | FAN AXIAL 60X25MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5653 pcs | Data sheet | 1.PMD2406PTVX-A U.GN.pdf2.PMD2406PTVX-A U.GN.pdf3.PMD2406PTVX-A U.GN.pdf |
| Width | 25.00mm | Weight | 0.165 lb (74.84g) |
| Voltage Range | 10 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.540 in H2O (134.5 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | MagLev® PMD |
| RPM | 6900 RPM | Power (Watts) | 3.80W |
| Other Names | 259-1981 PMD2406PTVX-A PMD2406PTVX-A U.GN-ND PMD2406PTVX-A-ND PMD2406PTVX-A.U.GN PMD2406PTVX-AU.GN PMD2406PTVX-AU.GN-ND Q7077078 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 44.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.158A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 36.0 CFM (1.01m³/min) |
