Sunon

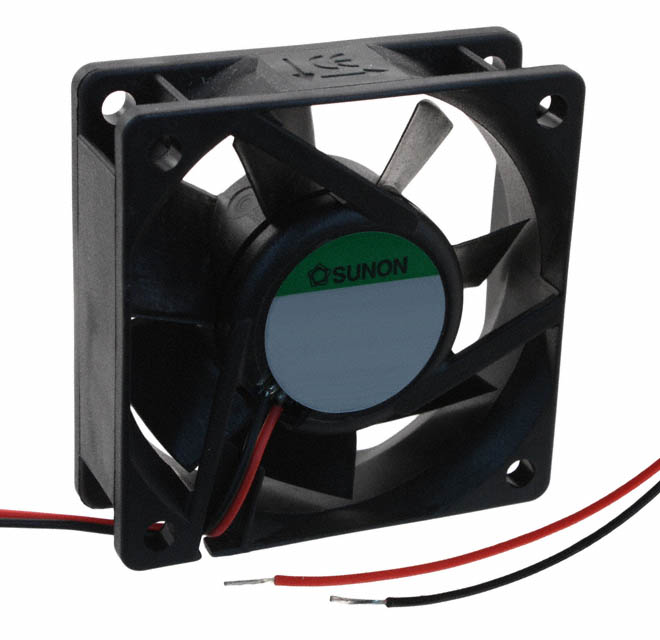

| Part Number | PMD1206PKB1-A.(2).GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 60X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4735 pcs | Data sheet | 1.PMD1206PKB1-A.(2).GN.pdf2.PMD1206PKB1-A.(2).GN.pdf |
| Width | 20.00mm | Weight | 0.121 lb (54.88g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.280 in H2O (69.7 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | PMD |
| RPM | 5000 RPM | Power (Watts) | 2.60W |
| Other Names | 259-1403 PMD1206PKB1-A (2).GN PMD1206PKB1A2GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 39.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.220A |
| Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
| Air Flow | 27.5 CFM (0.770m³/min) |
