Sunon

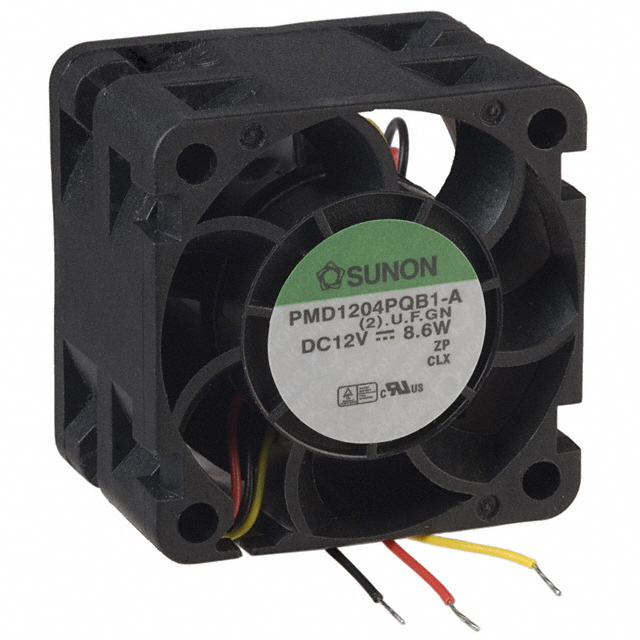

| Part Number | PMD1204PQB1-A.(2).U.F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X28MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4181 pcs | Data sheet | 1.PMD1204PQB1-A.(2).U.F.GN.pdf2.PMD1204PQB1-A.(2).U.F.GN.pdf |
| Width | 28.00mm | Weight | 0.101 lb (45.81g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 1.340 in H2O (333.8 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | PMD |
| RPM | 15000 RPM | Power (Watts) | 8.60W |
| Other Names | 259-1370 PMD1204PQB1-A(2).U.F.GN PMD1204PQB1A2UFGN U1240PQB14AFURJ |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 55.5 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.720A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 24.0 CFM (0.672m³/min) |
