Sunon
| Part Number | MEC0254V1-000U-A99 | Manufacturer | Sunon |
|---|---|---|---|

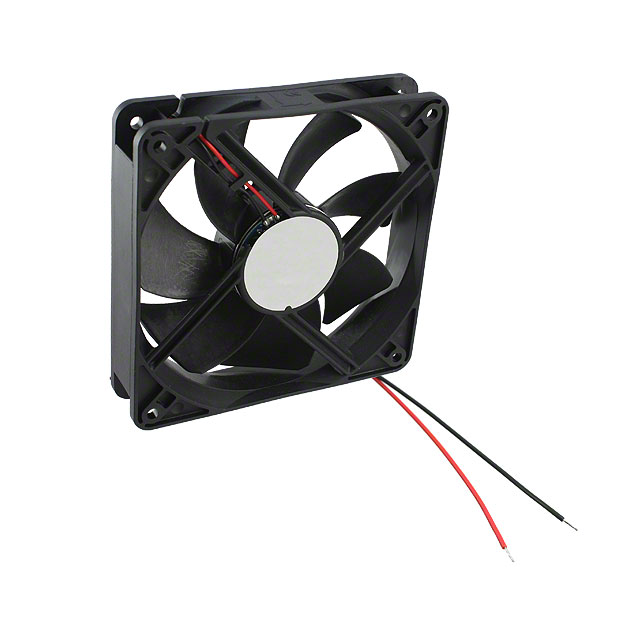

| Description | FAN AXIAL 120X25MM 48VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5739 pcs | Data sheet | MEC0254V1-000U-A99.pdf |
| Width | 25.00mm | Weight | 0.357 lb (161.93g) |
| Voltage Range | 24 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.280 in H2O (69.7 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | MagLev® MEC |
| RPM | 3100 RPM | Power (Watts) | 5.70W |
| Other Names | 259-1476 MEC0254V1-0000-A99 MEC0254V1000UA99 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 44.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart | Fan Type | Tubeaxial |
| Current Rating | 0.119A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 108.2 CFM (3.03m³/min) |
