Sunon

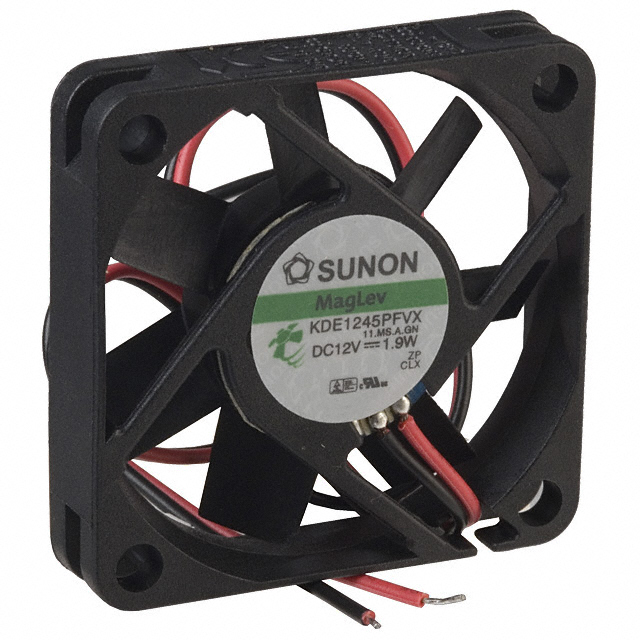

| Part Number | KDE1245PFVX.11.MS.A.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 45X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5483 pcs | Data sheet | 1.KDE1245PFVX.11.MS.A.GN.pdf2.KDE1245PFVX.11.MS.A.GN.pdf3.KDE1245PFVX.11.MS.A.GN.pdf |
| Width | 10.00mm | Weight | 0.041 lb (18.6g) |
| Voltage Range | 4.5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.220 in H2O (54.8 Pa) |
| Size / Dimension | Square - 45mm L x 45mm H | Series | MagLev® KDE |
| RPM | 7100 RPM | Power (Watts) | 1.90W |
| Other Names | 259-1362 E1245PFUX4A-GRG KDE1245PFVX 11.MS.A.GN KDE1245PFVX.11.MS.A.GN-ND |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.160A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 12.5 CFM (0.350m³/min) |
