Sunon

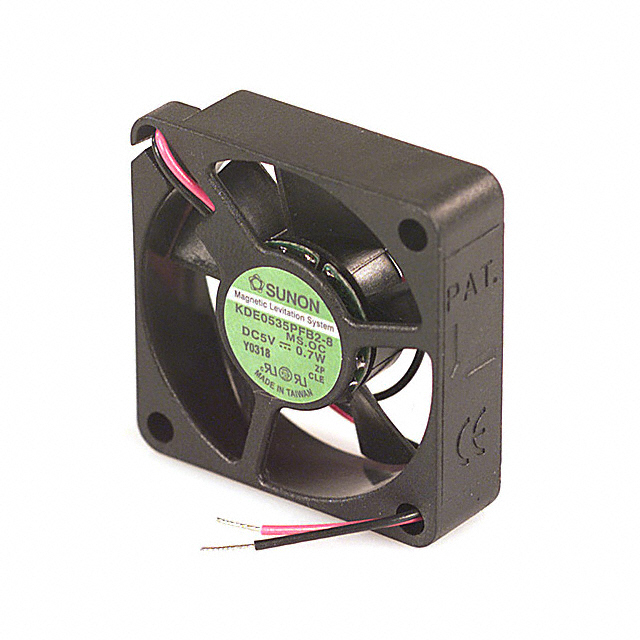

| Part Number | KDE0535PFB2-8 (MS.OC) | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 35X10MM BALL 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6926 pcs | Data sheet | 1.KDE0535PFB2-8 (MS.OC).pdf2.KDE0535PFB2-8 (MS.OC).pdf |
| Width | 10.00mm | Weight | 0.022 lb (9.98g) |
| Voltage Range | 3.5 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.080 in H2O (19.9 Pa) |
| Size / Dimension | Square - 35mm L x 35mm H | Series | KDE |
| RPM | 6000 RPM | Power (Watts) | 700mW |
| Other Names | 259-1188 E0535PFA28L--RZ KDE0535PFB2-8(MS)OC KDE0535PFB28MSOC |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 21.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.140A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 5.2 CFM (0.146m³/min) |
