Sunon

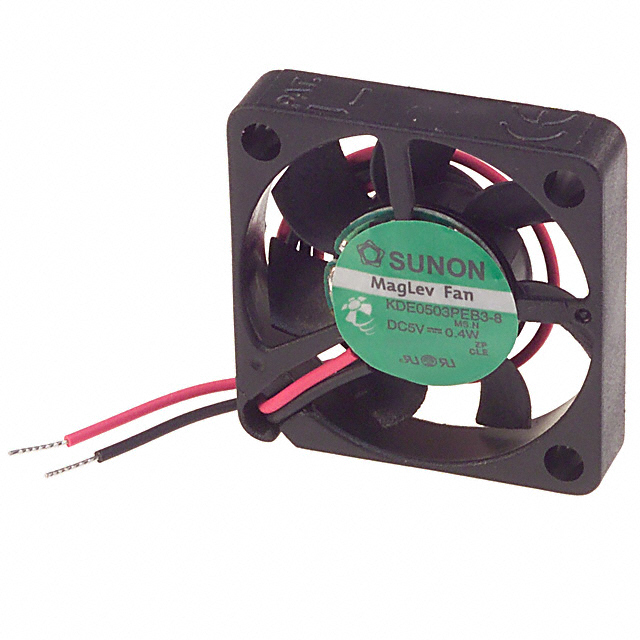

| Part Number | KDE0503PEB3-8 MS.N | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 30X6.9MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3450 pcs | Data sheet | 1.KDE0503PEB3-8 MS.N.pdf2.KDE0503PEB3-8 MS.N.pdf |
| Width | 6.90mm | Weight | 0.013 lb (5.9g) |
| Voltage Range | 3.5 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.060 in H2O (14.9 Pa) |
| Size / Dimension | Square - 30mm L x 30mm H | Series | KDE |
| RPM | 5500 RPM | Power (Watts) | 350mW |
| Other Names | 259-1191 E0530P6A38---NZ KDE0503PEB3-8(MS.N) KDE0503PEB38MSN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 16.5 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.070A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 2.4 CFM (0.067m³/min) |
