Sunon

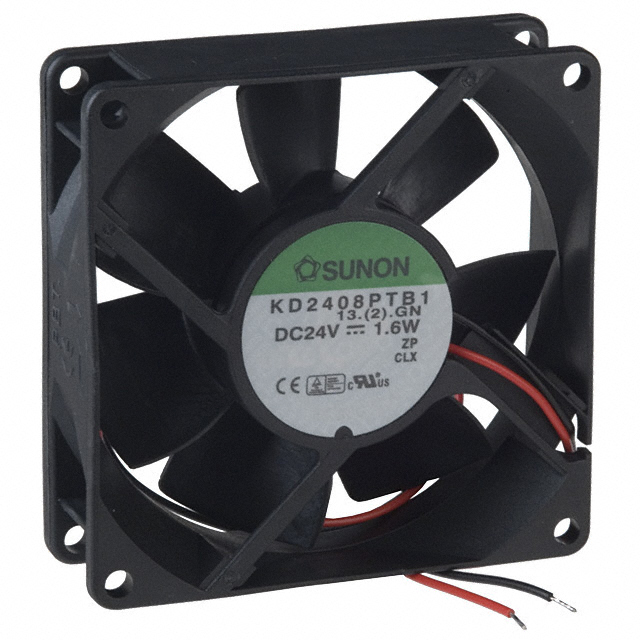

| Part Number | KD2408PTB1.13.(2).GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 80X25MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3858 pcs | Data sheet | 1.KD2408PTB1.13.(2).GN.pdf2.KD2408PTB1.13.(2).GN.pdf |
| Width | 25.00mm | Weight | 0.183 lb (83.01g) |
| Voltage Range | 8 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.190 in H2O (47.3 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | KD |
| RPM | 3100 RPM | Power (Watts) | 1.80W |
| Other Names | 259-1340 K2480PTB14-VGRA KD2408PTB1 13(2).GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.077A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 41.0 CFM (1.15m³/min) |
