Sunon

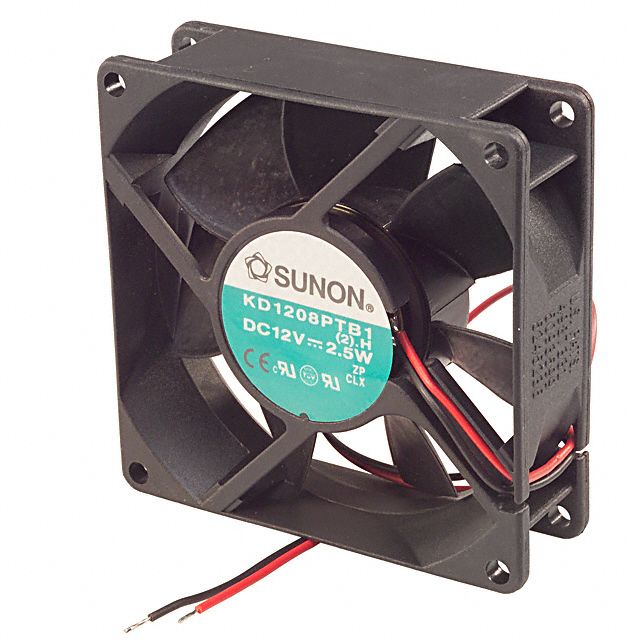

| Part Number | KD1208PTB1 (2) H | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 80X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5723 pcs | Data sheet | 1.KD1208PTB1 (2) H.pdf2.KD1208PTB1 (2) H.pdf |
| Width | 25.00mm | Weight | 0.204 lb (92.53g) |
| Voltage Range | 5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.180 in H2O (44.8 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | KD |
| RPM | 3000 RPM | Power (Watts) | 2.30W |
| Other Names | 259-1275 K1280PTB14---RH KD1208PTB1(2).H KD1208PTB1(2)H KD1208PTB1(2)H-ND KD1208PTB12H |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 33.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.190A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 39.5 CFM (1.11m³/min) |
