Sunon

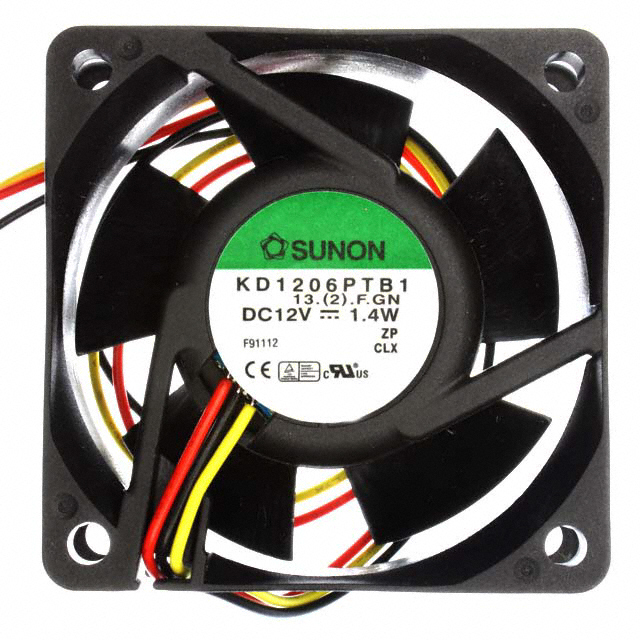

| Part Number | KD1206PTB1 (2).F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 60X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6451 pcs | Data sheet | KD1206PTB1 (2).F.GN.pdf |
| Width | 25.00mm | Weight | - |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 60mm L x 60mm H | Series | KD |
| RPM | - | Power (Watts) | 1.40W |
| Other Names | 259-1338 K1260PTB14VFGRA KD1206PTB1 13(2).F.GN KD1206PTB1.(2)F.GN KD1206PTB1.13.(2).F.GN |
Operating Temperature | - |
| Noise | - | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | - | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 23.5 CFM (0.658m³/min) |
