Sunon

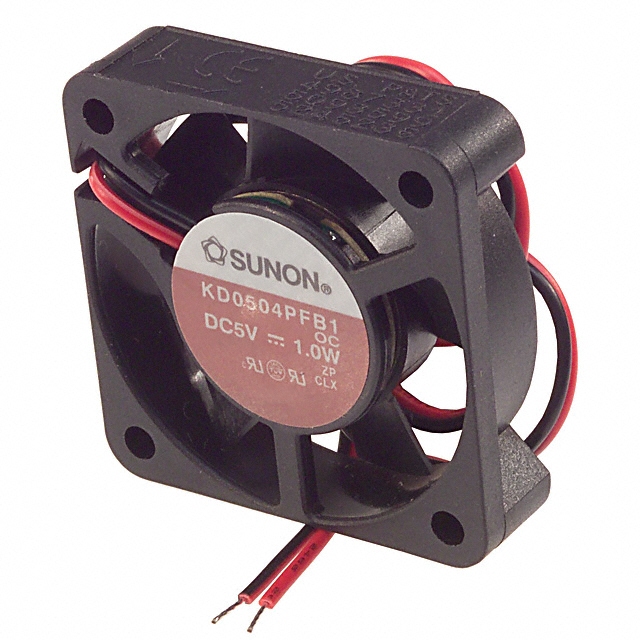

| Part Number | KD0504PFB1-OC | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10.5MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2754 pcs | Data sheet | 1.KD0504PFB1-OC.pdf2.KD0504PFB1-OC.pdf |
| Width | 10.50mm | Weight | 0.035 lb (15.88g) |
| Voltage Range | 3.5 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.170 in H2O (42.3 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | KD |
| RPM | 7500 RPM | Power (Watts) | 1.00W |
| Other Names | 259-1267 K0540PFH14L--RJ KD0504PFB1 OC KD0504PFB1OC KDE0504PFB1 OC KDE0504PFB1OC |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 28.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.200A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 7.5 CFM (0.210m³/min) |
