Sunon
| Part Number | HA92251V4-000U-999 | Manufacturer | Sunon |
|---|---|---|---|

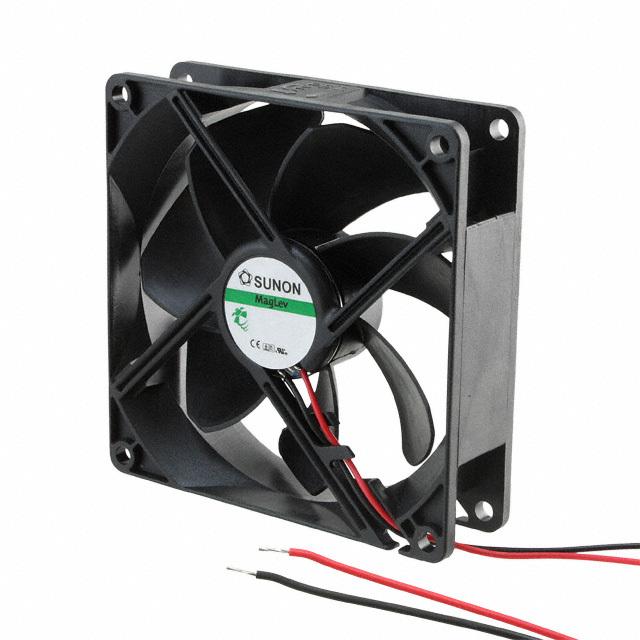

| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17159 pcs | Data sheet | 1.HA92251V4-000U-999.pdf2.HA92251V4-000U-999.pdf3.HA92251V4-000U-999.pdf |
| Width | 25.00mm | Weight | 0.039 lb (17.69g) |
| Voltage Range | 4.5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.040 in H2O (10.0 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | MagLev® HA |
| RPM | 1700 RPM | Power (Watts) | 900mW |
| Other Names | 259-1614 HA92251V4-0000-999 HA92251V4-0000-999-ND HA92251V4-000U-999-ND HA92251V4000U999 Q4037930 |
Operating Temperature | - |
| Noise | 17.7 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.073A | Bearing Type | Vapo-Bearing™ |
| Approvals | CUR, TUV, UL | Air Flow | 28.1 CFM (0.787m³/min) |
