Sunon

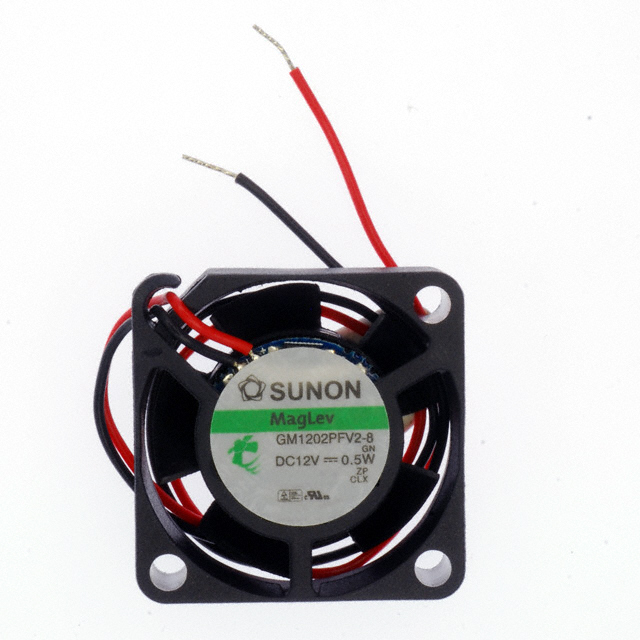

| Part Number | GM1202PFV2-8.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 25X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3835 pcs | Data sheet | 1.GM1202PFV2-8.GN.pdf2.GM1202PFV2-8.GN.pdf |
| Width | 10.00mm | Weight | 0.017 lb (7.71g) |
| Voltage Range | 4.5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.180 in H2O (44.8 Pa) |
| Size / Dimension | Square - 25mm L x 25mm H | Series | MagLev® GM |
| RPM | 10000 RPM | Power (Watts) | 500mW |
| Other Names | 259-1395 F1225PFV28--GRZ GM1202PFV2-8 .GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 16.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.040A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 3.0 CFM (0.084m³/min) |
