Sunon

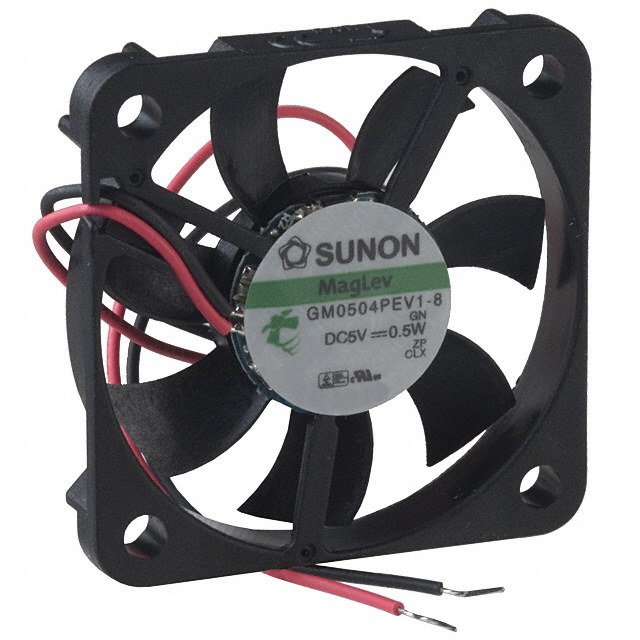

| Part Number | GM0504PEV1-8.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X6.9MM 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3646 pcs | Data sheet | 1.GM0504PEV1-8.GN.pdf2.GM0504PEV1-8.GN.pdf |
| Width | 6.90mm | Weight | 0.017 lb (7.71g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.100 in H2O (24.9 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | MagLev® GM |
| RPM | 7000 RPM | Power (Watts) | 500mW |
| Other Names | 259-1331 F0540PEV18--GRG GM0504PEV18GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 32.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.090A |
| Bearing Type | Vapo-Bearing™ | Approvals | CE, CUR, TUV, UL |
| Air Flow | 5.9 CFM (0.165m³/min) |
