Sunon

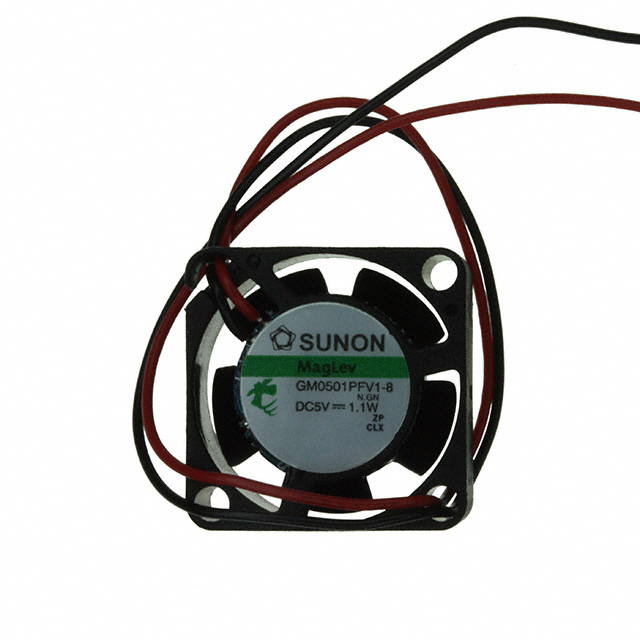

| Part Number | GM0501PFV1-8.N.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 20X10MM VAPO 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4217 pcs | Data sheet | GM0501PFV1-8.N.GN.pdf |
| Width | 10.00mm | Weight | 0.012 lb (5.44g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.290 in H2O (72.2 Pa) |
| Size / Dimension | Square - 20mm L x 20mm H | Series | MagLev® GM |
| RPM | 17000 RPM | Power (Watts) | 1.10W |
| Other Names | GM0501PFV1-8 N.GN GM0501PFV1-8 N.GN-ND Q3311545 |
Operating Temperature | - |
| Noise | 25.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 1.9 CFM (0.053m³/min) |
