Sunon

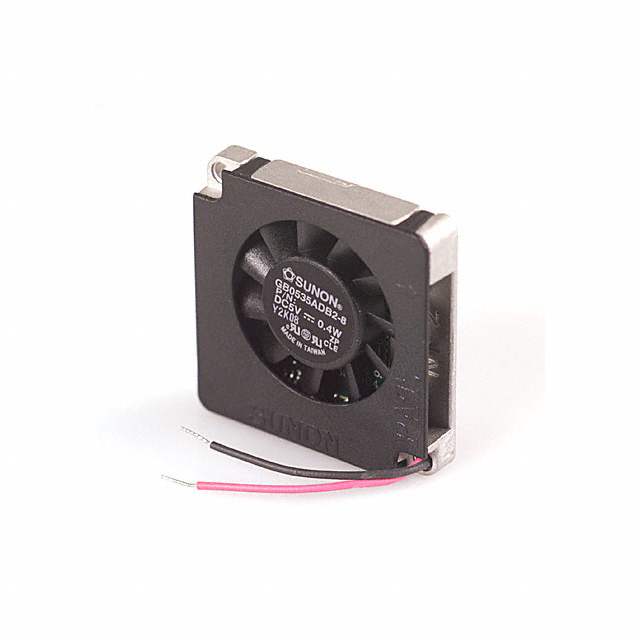

| Part Number | GB0535ADB2-8 | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 34.8X7.3MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3300 pcs | Data sheet | GB0535ADB2-8.pdf |
| Width | 7.30mm | Weight | 0.026 lb (11.79g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.220 in H2O (54.8 Pa) |
| Size / Dimension | Square - 34.8mm L x 34.8mm H | Series | GB |
| RPM | 6500 RPM | Power (Watts) | 400mW |
| Other Names | 259-1092 A0535A7H28L--R- GB0535ADB2-8-ND GB0535ADB28 |
Operating Temperature | 14 ~ 194°F (-10 ~ 90°C) |
| Noise | 25.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.080A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 1.0 CFM (0.028m³/min) |
