Sunon

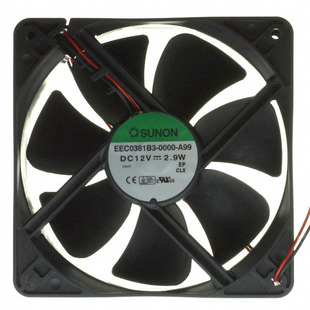

| Part Number | EEC0381B3-000U-A99 | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5705 pcs | Data sheet | 1.EEC0381B3-000U-A99.pdf2.EEC0381B3-000U-A99.pdf |
| Width | 38.00mm | Weight | 0.472 lb (214.1g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.180 in H2O (44.8 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | EEC |
| RPM | 2100 RPM | Power (Watts) | 3.10W |
| Other Names | 259-1499 EEC0381B3-0000-A99 EEC0381B3000UA99 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 37.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 100000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart | Fan Type | Tubeaxial |
| Current Rating | 0.255A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 93.0 CFM (2.60m³/min) |
