Sunon

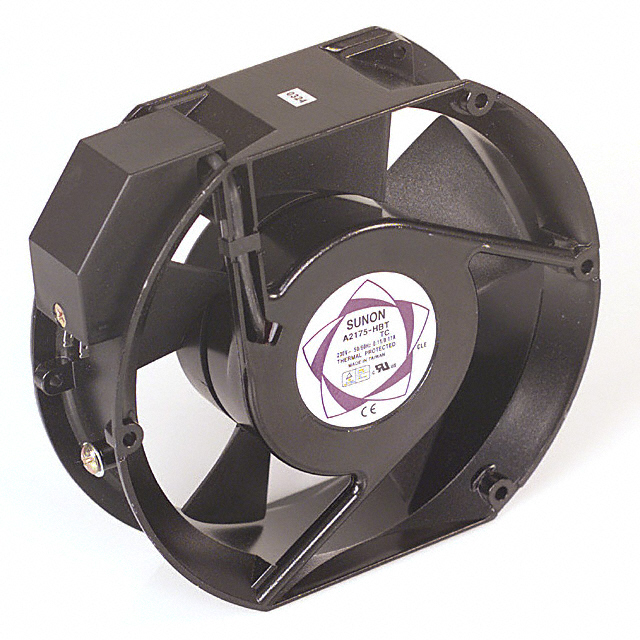

| Part Number | A2175HBT-TC | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 171.5X51MM 220/240VAC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5896 pcs | Data sheet | 1.A2175HBT-TC.pdf2.A2175HBT-TC.pdf |
| Width | 51.00mm | Weight | 2 lbs (907.2g) |
| Voltage Range | 150 ~ 250VAC | Voltage - Rated | 240VAC |
| Termination | 2 Terminals | Static Pressure | 0.690 in H2O (171.8 Pa) |
| Size / Dimension | Rectangular/Rounded - 171.5mm L x 151.5mm H | Series | A |
| RPM | 3200 RPM | Power (Watts) | 26.00W |
| Other Names | 259-1108 A2175-HBT-TC A2175HBTTC A230H2AQB1TK |
Operating Temperature | 14 ~ 176°F (-10 ~ 80°C) |
| Noise | 58.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.230A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 239.0 CFM (6.69m³/min) |
