XZMDH146S

SunLEDSunLED

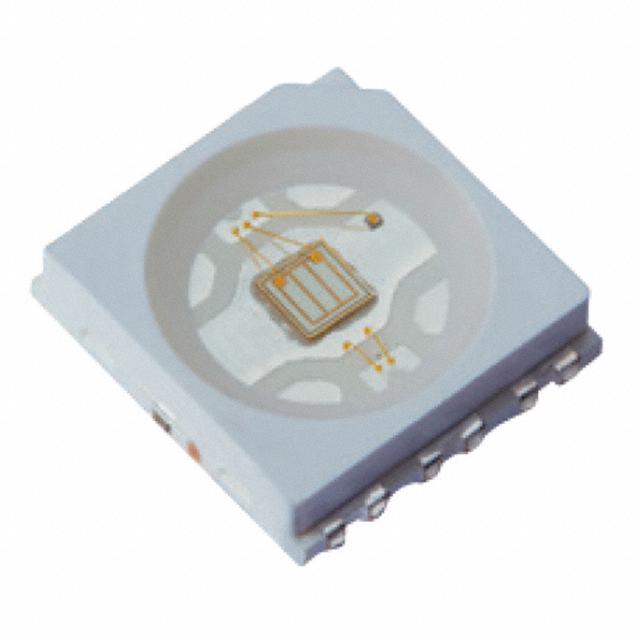

XZMDH146S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: XZMDH146S
Manufacturer/Brand: SunLED
Product description LED 5X5MM RED WATER CLEAR SMD
Datasheets: XZMDH146S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5272 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5272 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of XZMDH146S

Part Number XZMDH146S Manufacturer SunLED
Description LED 5X5MM RED WATER CLEAR SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5272 pcs Data sheet XZMDH146S.pdf
Wavelength 625nm (Typ) Voltage - Forward (Vf) (Typ) 2.5V
Viewing Angle 120° Thermal Resistance of Package -
Temperature - Test 25°C Supplier Device Package SMD
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm) Series -
Packaging Tape & Reel (TR) Package / Case 2020 (5050 Metric)
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 3 (168 Hours)
Lumens/Watt @ Current - Test 46 lm/W Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 0.057" (1.45mm) Flux @ Current/Temperature - Test 40 lm (Typ)
Detailed Description LED Lighting Color - Red 625nm (Typ) 2020 (5050 Metric) Current - Test 350mA
Current - Max 500mA Color Red
