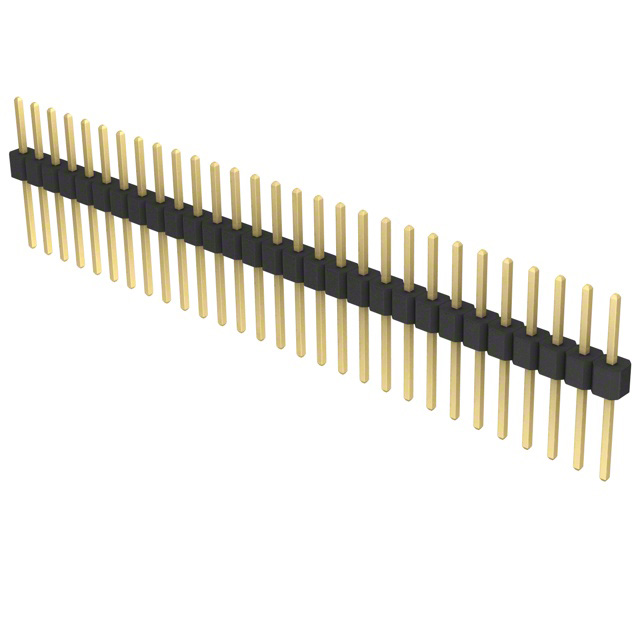

Sullins Connector Solutions
| Part Number | PRPC029SACN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL STR 29POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105404 pcs | Data sheet | PRPC029SACN-RC.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | - |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.320" (8.13mm) | Other Names | S9528E-29 S9528E-29-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions | 29 | Number of Contacts | Flash |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Part Number | PRPC029SACN-RC | Length - Post (Mating) | - |
| Insulation Material | Gold | Insulation Height | 0.648" (16.47mm) |
| Features | - | Expanded Description | 29 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole Gold |
| Description | CONN HEADER .100" SNGL STR 29POS | Current Rating | 3A per Contact |
| Current - Max/Contact | - | Contact Length - Post | 0.230" (5.84mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | Flash |
| Contact Finish - Mating | 0.098" (2.50mm) | Connector Type | Header, Breakaway |
| Actual Diameter | Black |
