PFC2225BNP-801

Sumida Corporation

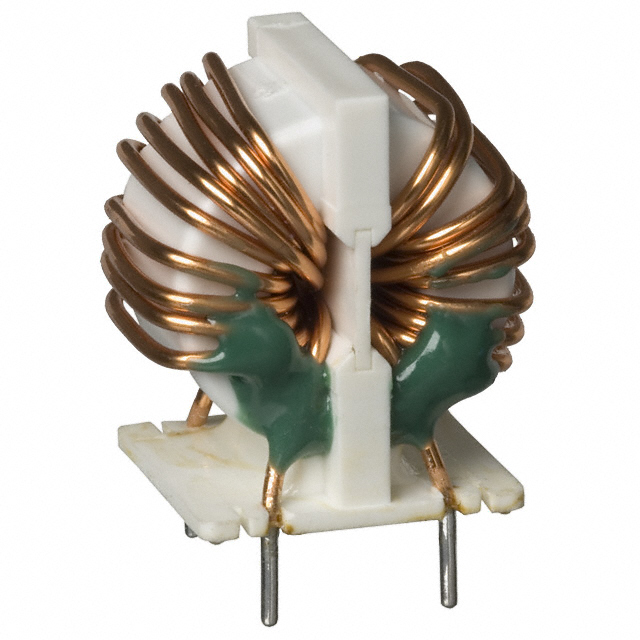

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PFC2225BNP-801
Manufacturer/Brand:	Sumida Corporation
Product description	CMC 800UH 8A 2LN TH
Datasheets:	PFC2225BNP-801.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33758 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33758 pcs

Reference Price (In US Dollars)

1000 pcs: $0.948

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.948

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PFC2225BNP-801

Part Number	PFC2225BNP-801	Manufacturer	Sumida Corporation
Description	CMC 800UH 8A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33758 pcs	Data sheet	PFC2225BNP-801.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.984" L x 0.787" W (25.00mm x 20.00mm)	Series	PFC
Ratings	-	Packaging	Bulk
Package / Case	Vertical, No Base, 4 PC Pin	Other Names	308-1405 PFC2225BNP-901
Operating Temperature	-40°C ~ 85°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	800µH @ 1kHz
Height (Max)	1.063" (27.00mm)	Filter Type	-
Features	-	Detailed Description	800µH @ 1kHz 2 Line Common Mode Choke Through Hole 8A DCR 12.5 mOhm
DC Resistance (DCR) (Max)	12.5 mOhm	Current Rating (Max)	8A
Approvals	-
