Sullins Connector Solutions

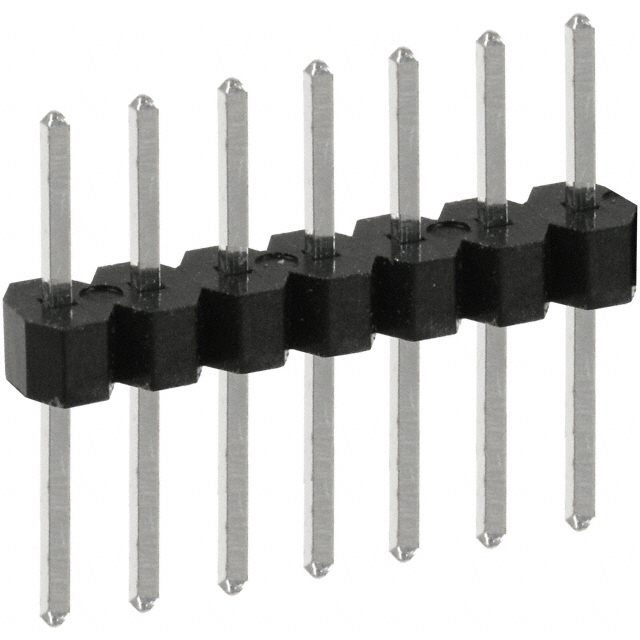

| Part Number | PEC07SACN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 SINGL STR 7POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93142 pcs | Data sheet | 1.PEC07SACN.pdf2.PEC07SACN.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | - |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.320" (8.13mm) | Other Names | S1032E-07 |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 1 |
| Number of Positions | 7 | Number of Contacts | 100µin (2.54µm) |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | PEC07SACN |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | 0.650" (16.51mm) | Features | - |
| Expanded Description | 7 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole Tin | Description | CONN HEADER .100 SINGL STR 7POS |
| Current Rating | 3A | Current - Max/Contact | - |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | 100µin (2.54µm) | Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header, Breakaway | Actual Diameter | Black |
