Sullins Connector Solutions

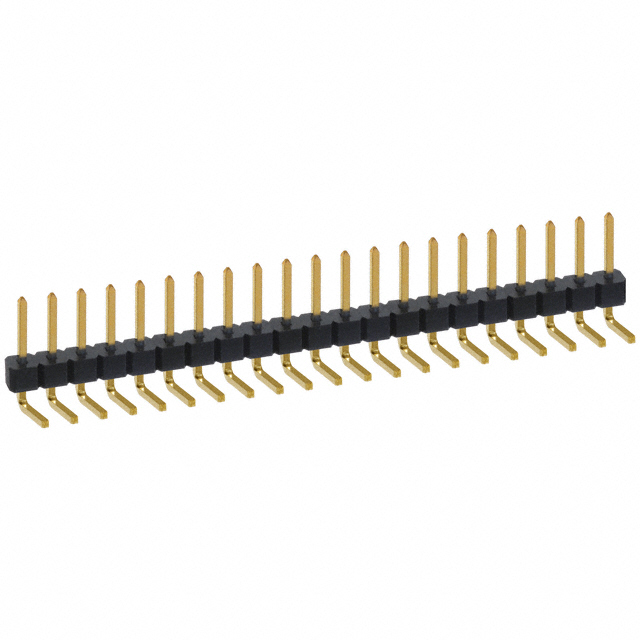

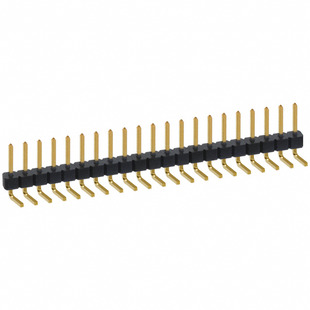

| Part Number | NRPN211PARN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 2MM SINGLE R/A 21POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52011 pcs | Data sheet | NRPN211PARN-RC.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.079" (2.00mm) |
| Shield Termination | Square | Series | - |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | 150V |
| Overall Contact Length | 0.110" (2.79mm) | Other Names | PRPN211PARN-RC S5802-21 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions | 21 | Number of Contacts | Flash |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | NRPN211PARN-RC |
| Length - Post (Mating) | - | Insulation Material | Gold |
| Insulation Height | - | Features | - |
| Expanded Description | 21 Positions Header Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Description | CONN HEADER 2MM SINGLE R/A 21POS |
| Current Rating | 2A | Current - Max/Contact | - |
| Contact Length - Post | 0.141" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polyamide (PA6T), Nylon 6T | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | Flash | Contact Finish - Mating | 0.079" (2.00mm) |
| Connector Type | Header | Actual Diameter | Black |
