LF2420NP-352

Sumida Corporation

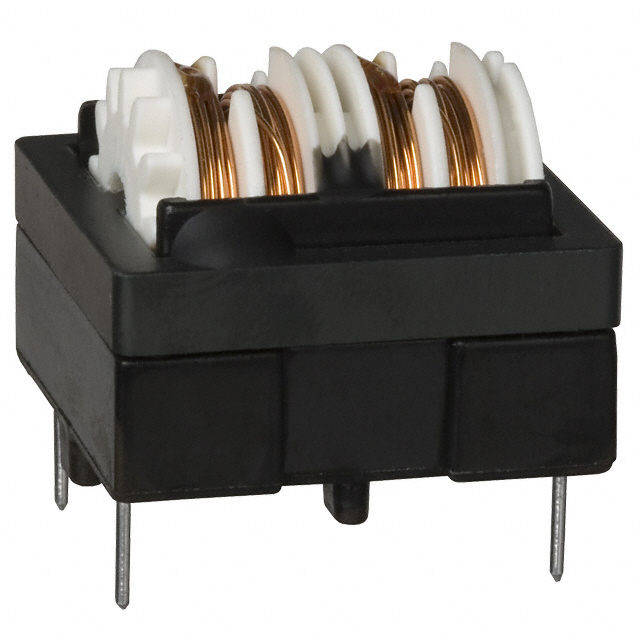

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LF2420NP-352
Manufacturer/Brand:	Sumida Corporation
Product description	CMC 3.5MH 1.7A 2LN TH
Datasheets:	LF2420NP-352.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69916 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69916 pcs

Reference Price (In US Dollars)

1000 pcs: $0.538

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.538

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LF2420NP-352

Part Number	LF2420NP-352	Manufacturer	Sumida Corporation
Description	CMC 3.5MH 1.7A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69916 pcs	Data sheet	LF2420NP-352.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.953" L x 0.953" W (24.20mm x 24.20mm)	Series	LF
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	308-1360
Operating Temperature	-	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	3.5mH @ 1kHz
Height (Max)	0.827" (21.00mm)	Filter Type	Power Line
Features	-	Detailed Description	3.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 180 mOhm
DC Resistance (DCR) (Max)	180 mOhm	Current Rating (Max)	1.7A
Approvals	-
