CPFC805NP-100M05

Sumida Corporation

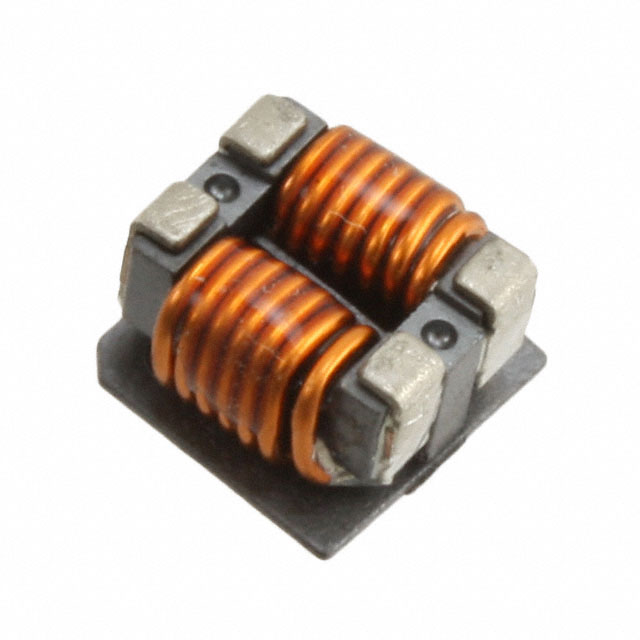

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CPFC805NP-100M05
Manufacturer/Brand:	Sumida Corporation
Product description	CMC 4.5A 2LN 500 OHM SMD
Datasheets:	CPFC805NP-100M05.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	97532 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 97532 pcs

Reference Price (In US Dollars)

1000 pcs: $0.37

3000 pcs: $0.358

5000 pcs: $0.346

10000 pcs: $0.334

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.37

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CPFC805NP-100M05

Part Number	CPFC805NP-100M05	Manufacturer	Sumida Corporation
Description	CMC 4.5A 2LN 500 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	97532 pcs	Data sheet	CPFC805NP-100M05.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.311" L x 0.295" W (7.90mm x 7.50mm)	Series	CPFC
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	-	Other Names	308-1562-2 CPFC805NP100M05
Operating Temperature	-	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance @ Frequency	500 Ohms @ 100MHz	Height (Max)	0.189" (4.80mm)
Filter Type	Power Line	Features	-
Detailed Description	2 Line Common Mode Choke Surface Mount 500 Ohms @ 100MHz 4.5A DCR 15 mOhm	DC Resistance (DCR) (Max)	15 mOhm
Current Rating (Max)	4.5A	Approvals	-
