CDEPI106NP-220-S

Sumida Corporation

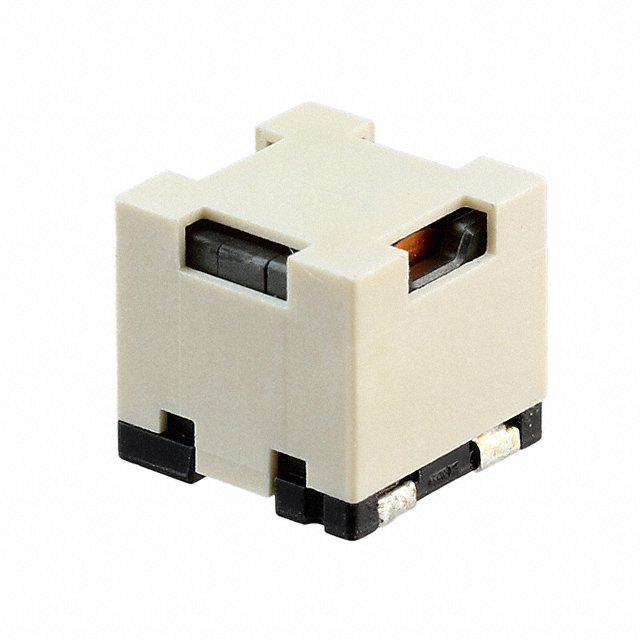

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CDEPI106NP-220-S
Manufacturer/Brand:	Sumida Corporation
Product description	INDUCT ARRAY 2 COIL 11UH SMD
Datasheets:	CDEPI106NP-220-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69545 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69545 pcs

Reference Price (In US Dollars)

250 pcs: $0.455

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.455

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CDEPI106NP-220-S

Part Number	CDEPI106NP-220-S	Manufacturer	Sumida Corporation
Description	INDUCT ARRAY 2 COIL 11UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69545 pcs	Data sheet	CDEPI106NP-220-S.pdf
Tolerance	-	Size / Dimension	0.433" L x 0.433" W (11.00mm x 11.00mm)
Shielding	Shielded	Series	CDEPI106
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	308-1615-2 CDEPI106NP220S
Operating Temperature	-40°C ~ 105°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	44µH
Inductance - Connected In Parallel	11µH	Height	0.413" (10.50mm)
Detailed Description	Shielded 2 Coil Inductor Array 44µH Inductance - Connected in Series 11µH Inductance - Connected in Parallel 11.5 mOhm DC Resistance (DCR) - Parallel 16A Nonstandard	DC Resistance (DCR) - Series	46 mOhm
DC Resistance (DCR) - Parallel	11.5 mOhm	Current Saturation - Series	2.2A
Current Saturation - Parallel	4.4A	Current Rating - Series	2A
Current Rating - Parallel	16A
