SWR204-NRTN-D03-RA-GA

Sullins Connector Solutions

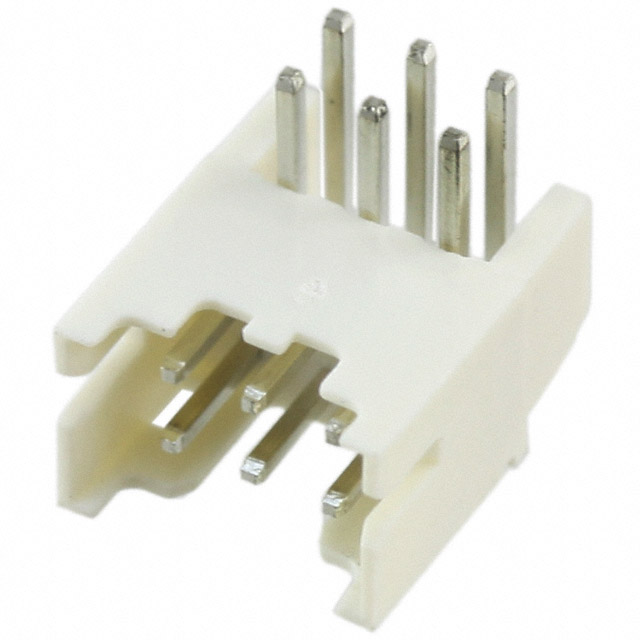

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SWR204-NRTN-D03-RA-GA
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HDR 2.0MM DUAL PCB RA 6POS
Datasheets:	SWR204-NRTN-D03-RA-GA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	344015 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 344015 pcs

Reference Price (In US Dollars)

2000 pcs: $0.086

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.086

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SWR204-NRTN-D03-RA-GA

Part Number	SWR204-NRTN-D03-RA-GA	Manufacturer	Sullins Connector Solutions
Description	CONN HDR 2.0MM DUAL PCB RA 6POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	344015 pcs	Data sheet	SWR204-NRTN-D03-RA-GA.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SWR204	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	S9460 SWR204NRTND03RAGA
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.197" (5.00mm)
Insulation Color	Gray	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)	Current Rating	3A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
