SMH102-LPSE-D25-SP-BK

Sullins Connector Solutions

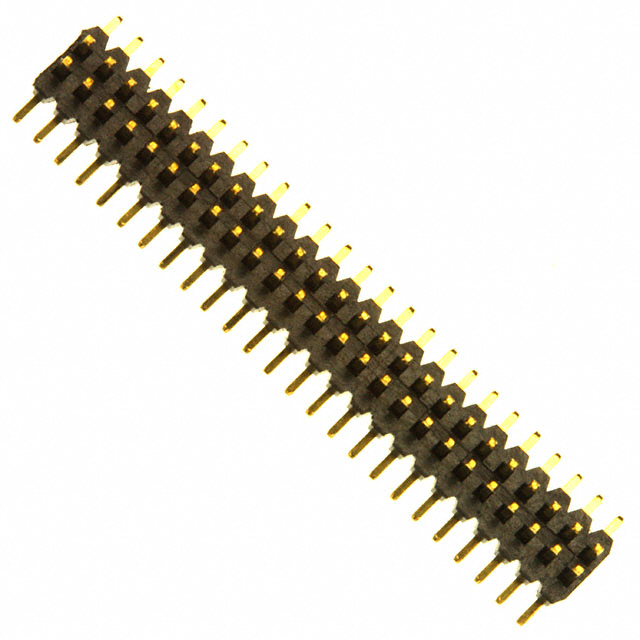

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SMH102-LPSE-D25-SP-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER 50POS 1MM DL AU SMD
Datasheets:	SMH102-LPSE-D25-SP-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14265 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14265 pcs

Reference Price (In US Dollars)

1000 pcs: $2.356

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.356

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SMH102-LPSE-D25-SP-BK

Part Number	SMH102-LPSE-D25-SP-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER 50POS 1MM DL AU SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14265 pcs	Data sheet	SMH102-LPSE-D25-SP-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	SMH	Row Spacing - Mating	0.039" (1.00mm)
Pitch - Mating	0.039" (1.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	S9232
Operating Temperature	-40°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.039" (1.00mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 50 position 0.039" (1.00mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.075" (1.90mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
