SMH100-LPSE-S20-SC-BK

Sullins Connector Solutions

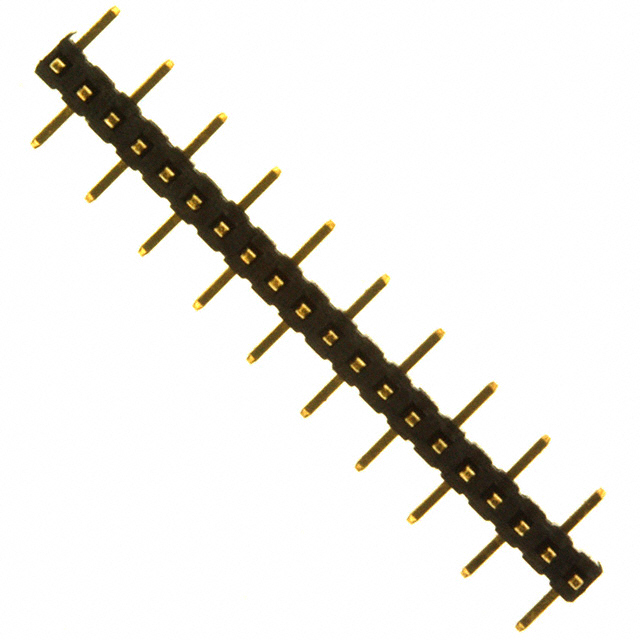

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SMH100-LPSE-S20-SC-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER 20PS 1MM AU SMD LEFT
Datasheets:	1.SMH100-LPSE-S20-SC-BK.pdf 2.SMH100-LPSE-S20-SC-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43018 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43018 pcs

Reference Price (In US Dollars)

1000 pcs: $0.919

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.919

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SMH100-LPSE-S20-SC-BK

Part Number	SMH100-LPSE-S20-SC-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER 20PS 1MM AU SMD LEFT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43018 pcs	Data sheet	1.SMH100-LPSE-S20-SC-BK.pdf 2.SMH100-LPSE-S20-SC-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	SMH	Row Spacing - Mating	-
Pitch - Mating	0.039" (1.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	S9211 SMH100LPSES20SCBK
Operating Temperature	-40°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.039" (1.00mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 20 position 0.039" (1.00mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.065" (1.65mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
