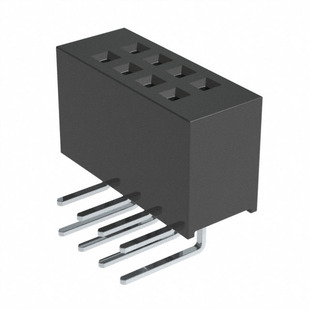

Sullins Connector Solutions
| Part Number | SFH11-PBEC-D04-RA-BK-M181 | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208980 pcs | Data sheet | SFH11-PBEC-D04-RA-BK-M181.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SFH11 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | Q8860194 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.236" (6.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.106" (2.69mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
