SBH21-NBPN-D05-RA-BK

Sullins Connector Solutions

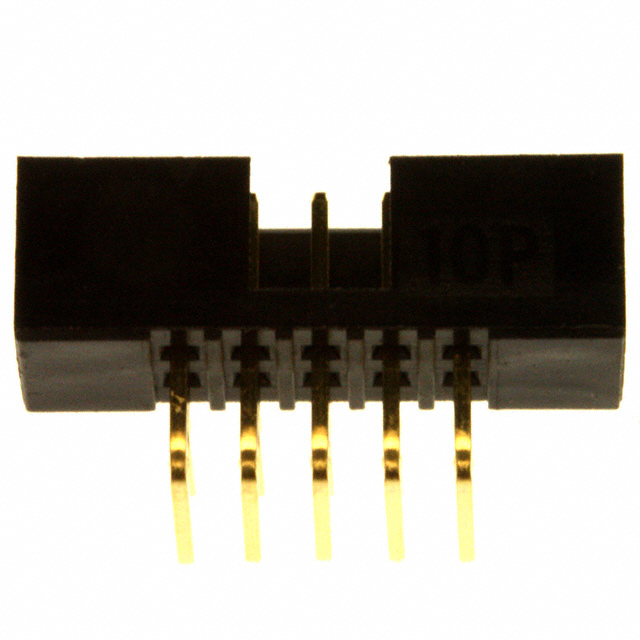

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SBH21-NBPN-D05-RA-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEAD 2MM 10POS GOLD R/A
Datasheets:	SBH21-NBPN-D05-RA-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	77356 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 77356 pcs

Reference Price (In US Dollars)

1 pcs: $0.423

10 pcs: $0.371

100 pcs: $0.32

500 pcs: $0.262

1000 pcs: $0.233

5000 pcs: $0.21

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.423

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SBH21-NBPN-D05-RA-BK

Part Number	SBH21-NBPN-D05-RA-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEAD 2MM 10POS GOLD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77356 pcs	Data sheet	SBH21-NBPN-D05-RA-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	SBH21	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	S9027 SBH21NBPND05RABK
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.213" (5.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)	Current Rating	2A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
