SBH11-PBPC-D08-RA-BK

Sullins Connector Solutions

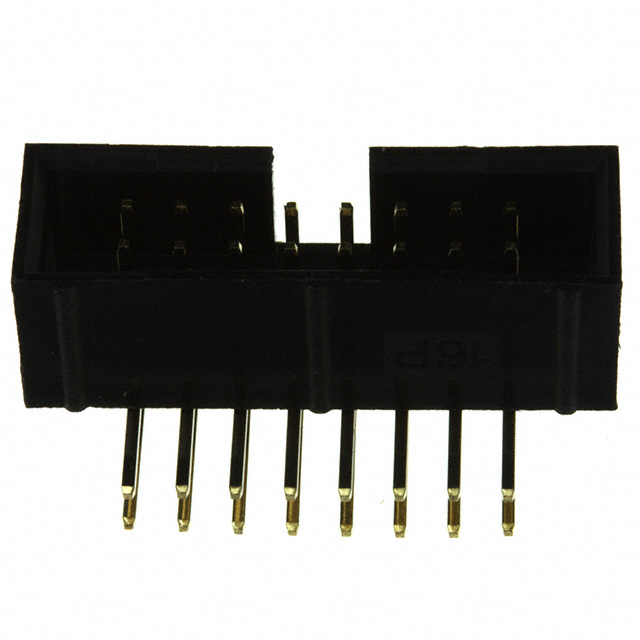

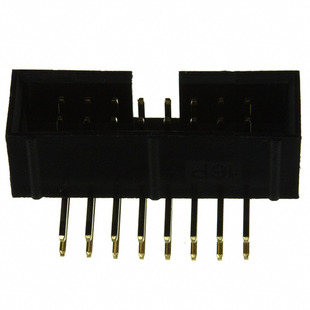

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SBH11-PBPC-D08-RA-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADR 2.54MM 16POS GOLD R/A
Datasheets:	SBH11-PBPC-D08-RA-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	136115 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 136115 pcs

Reference Price (In US Dollars)

1 pcs: $0.264

10 pcs: $0.231

100 pcs: $0.20

500 pcs: $0.163

1000 pcs: $0.145

5000 pcs: $0.131

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SBH11-PBPC-D08-RA-BK

Part Number	SBH11-PBPC-D08-RA-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEADR 2.54MM 16POS GOLD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	136115 pcs	Data sheet	SBH11-PBPC-D08-RA-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	SBH11	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	S9179 SBH11PBPCD08RABK
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.358" (9.10mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
