PTC06DAAN

Sullins Connector SolutionsSullins Connector Solutions

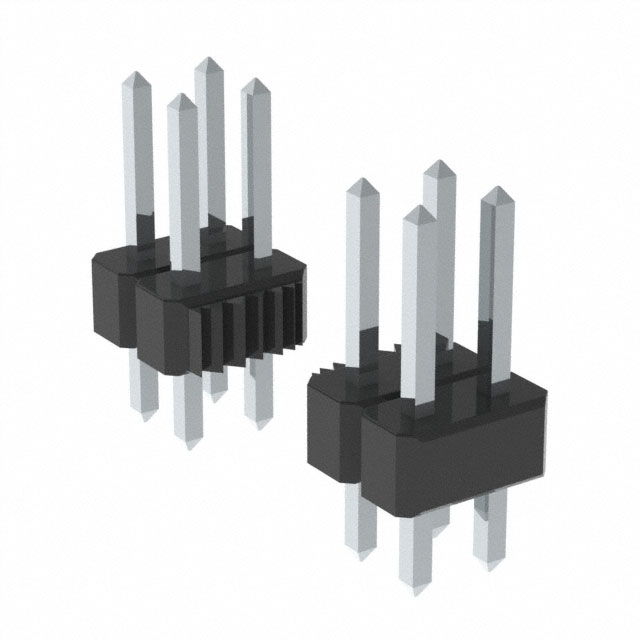

PTC06DAAN Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PTC06DAAN
Manufacturer/Brand: Sullins Connector Solutions
Product description CONN HEADER .100 DUAL STR 12POS
Datasheets: PTC06DAAN.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 4175 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4175 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PTC06DAAN

Part Number PTC06DAAN Manufacturer Sullins Connector Solutions
Description CONN HEADER .100 DUAL STR 12POS Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 4175 pcs Data sheet PTC06DAAN.pdf
Voltage Rating - Termination Solder
Style Board to Board or Cable Shrouding Unshrouded
Series - Row Spacing - Mating 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Overall Contact Length 0.450" (11.43mm) Other Names S2012-06
Operating Temperature - Number of Rows 2
Number of Positions Loaded All Number of Positions 12
Mounting Type Through Hole Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Insulation Material Thermoplastic, Polyester Insulation Height 0.100" (2.54mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description Connector Header Through Hole 12 position 0.100" (2.54mm) Current Rating 3A
Contact Type Male Pin Contact Shape Square
Contact Material Copper Alloy Contact Length - Post 0.120" (3.05mm)
Contact Length - Mating 0.230" (5.84mm) Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 100.0µin (2.54µm) Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header
Applications -
