PRPC023DBAN-M71RC

Sullins Connector Solutions

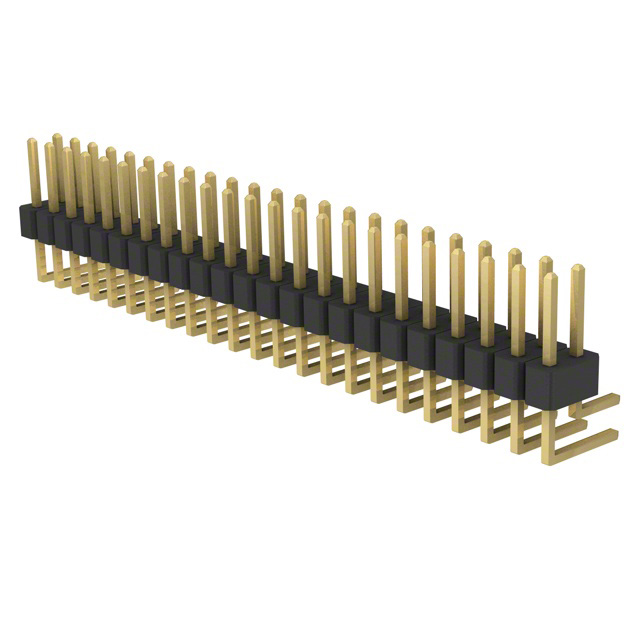

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PRPC023DBAN-M71RC
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER .100" DUAL R/A 46POS
Datasheets:	1.PRPC023DBAN-M71RC.pdf 2.PRPC023DBAN-M71RC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48319 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 48319 pcs

Reference Price (In US Dollars)

1 pcs: $0.679

10 pcs: $0.607

100 pcs: $0.50

500 pcs: $0.395

1000 pcs: $0.339

5000 pcs: $0.31

10000 pcs: $0.298

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.679

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PRPC023DBAN-M71RC

Part Number	PRPC023DBAN-M71RC	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER .100" DUAL R/A 46POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48319 pcs	Data sheet	1.PRPC023DBAN-M71RC.pdf 2.PRPC023DBAN-M71RC.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	-	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	S2111EC-23 S9521E-23 S9521E-23-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	46
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.197" (5.00mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 46 position 0.100" (2.54mm)
Current Rating	3A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	0.230" (5.84mm)
Contact Finish Thickness - Post	Flash	Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	-
