Sullins Connector Solutions

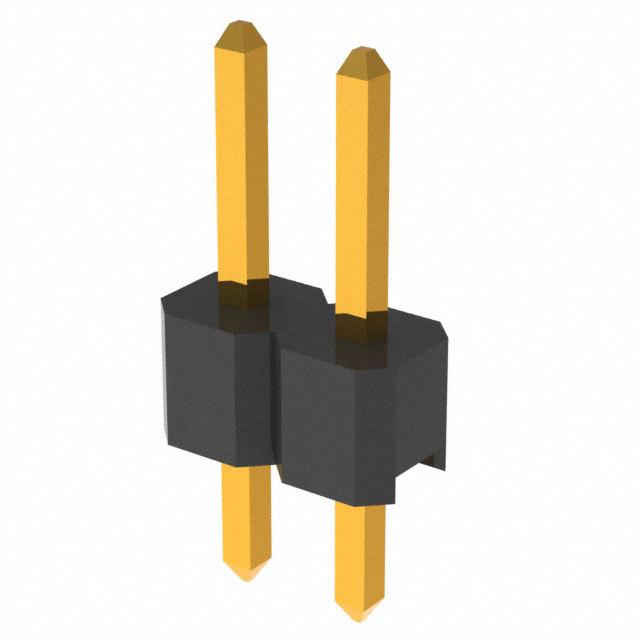

| Part Number | PRPC002SAAN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL STR 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 558950 pcs | Data sheet | PRPC002SAAN-RC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.448" (11.39mm) | Other Names | S1011EC-02 S9510E-02 S9510E-02-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
