Sullins Connector Solutions

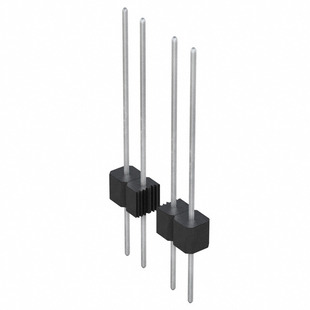

| Part Number | PREC040SAFN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL STR 40POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79917 pcs | Data sheet | PREC040SAFN-RC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.948" (24.09mm) | Other Names | PREC040SAFN-RC-ND PREC040SAFNRC S1062EC-40 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.620" (15.75mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | - |
