Sullins Connector Solutions
| Part Number | PPTC392LJBN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|

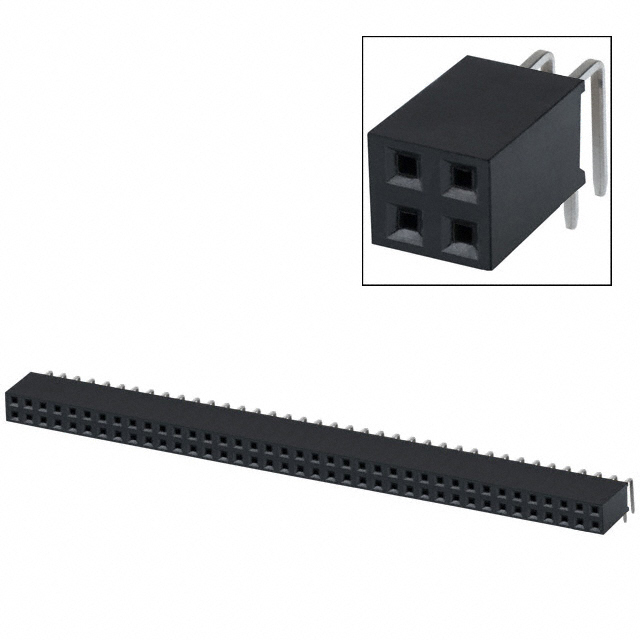

| Description | CONN FEMALE 78POS DL .1" R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31091 pcs | Data sheet | 1.PPTC392LJBN-RC.pdf2.PPTC392LJBN-RC.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | S5553 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 78 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.200" (5.08mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 78 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.124" (3.15mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
