Sullins Connector Solutions

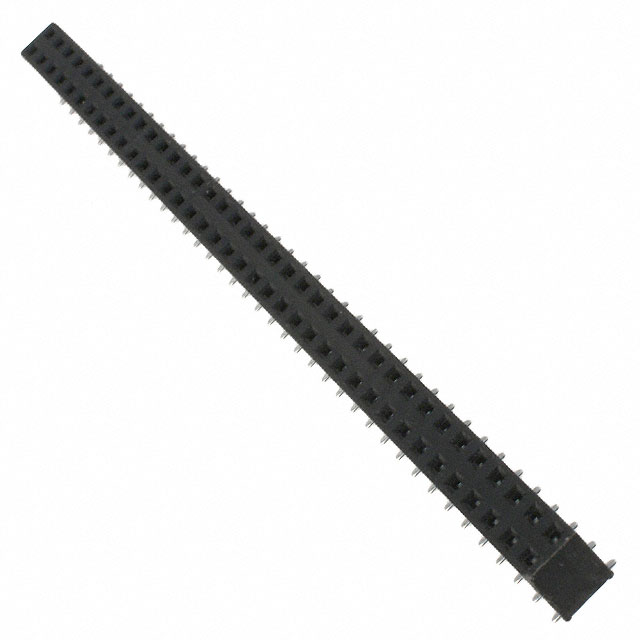

| Part Number | PPTC382KFMS | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN FEMALE 76POS DL .1" TIN SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4405 pcs | Data sheet | PPTC382KFMS.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | S4607 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 76 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester | Insulation Height | 0.299" (7.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 76 Position Header Connector 0.100" (2.54mm) Surface Mount Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
