Sullins Connector Solutions

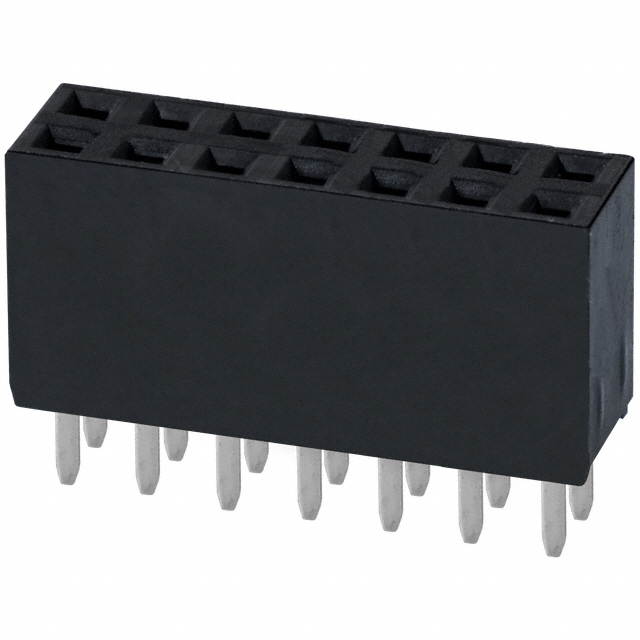

| Part Number | PPTC072LFBN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER FMAL 14PS .1" DL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96226 pcs | Data sheet | 1.PPTC072LFBN-RC.pdf2.PPTC072LFBN-RC.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | PPTC072LFBNRC S7075 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 14 Position Header Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
