Sullins Connector Solutions

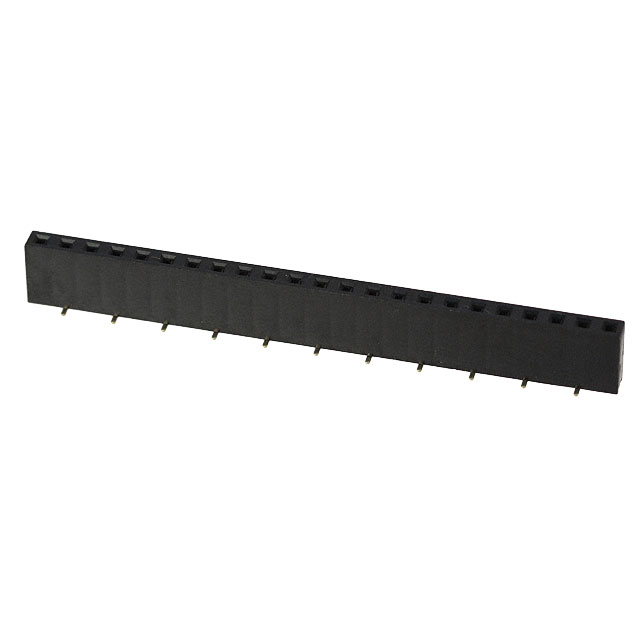

| Part Number | PPPC231KFXC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN FMALE 23POS .1" SMD GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5918 pcs | Data sheet | PPPC231KFXC.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | S4553 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 23 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester | Insulation Height | 0.280" (7.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 23 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Top or Bottom Entry | Applications | - |
