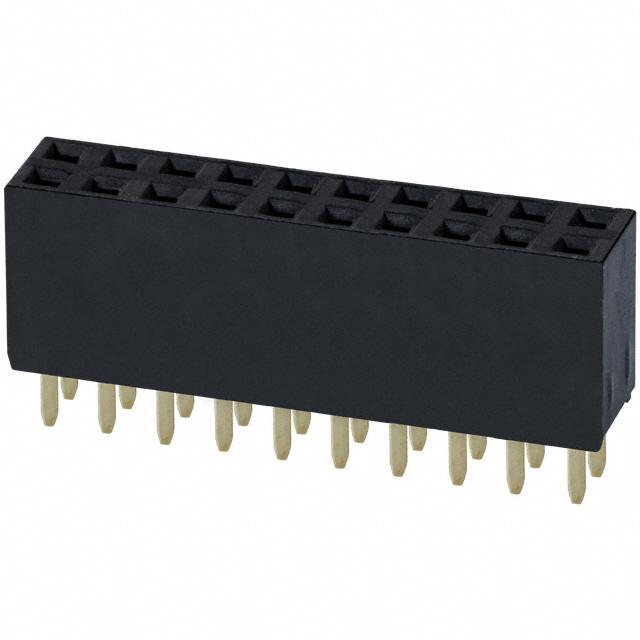

Sullins Connector Solutions
| Part Number | PPPC102LFBN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER FEM 20POS.1" DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4494 pcs | Data sheet | PPPC102LFBN.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | S4310 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Header Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
