Sullins Connector Solutions

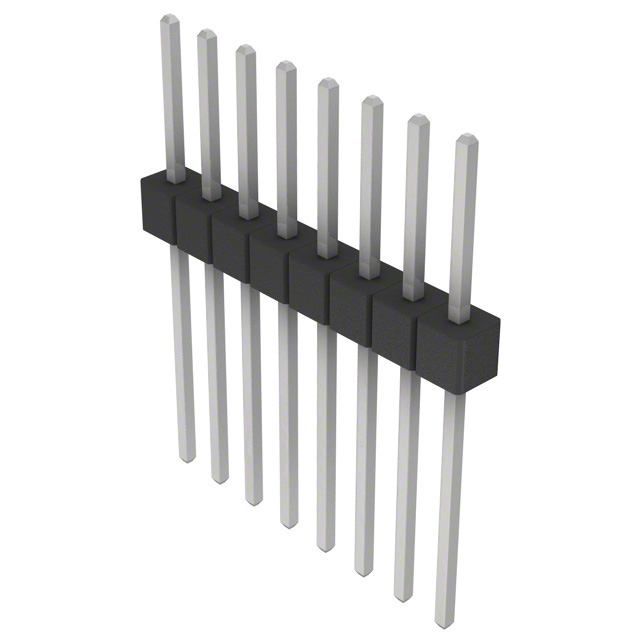

| Part Number | PEC08SFEN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 SINGL STR 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48850 pcs | Data sheet | 1.PEC08SFEN.pdf2.PEC08SFEN.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.938" (23.83mm) | Other Names | S1252E-08 |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.520" (13.21mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | - |
