PCC03SAAN

Sullins Connector Solutions

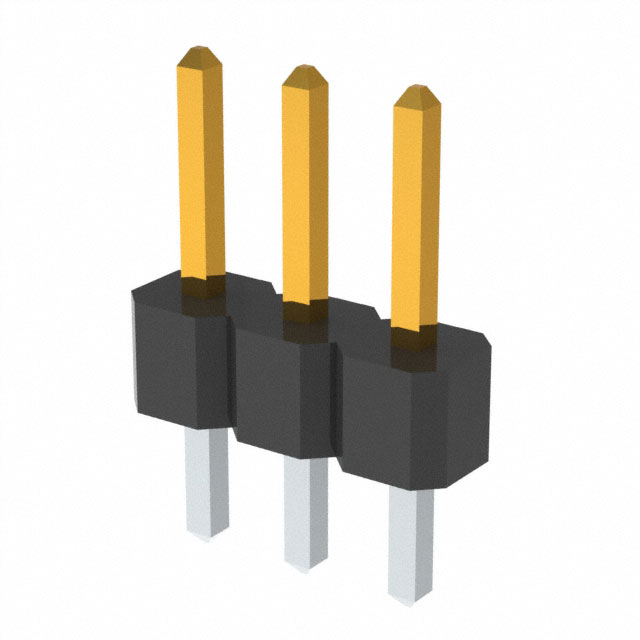

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PCC03SAAN
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER .100" 3POS
Datasheets:	1.PCC03SAAN.pdf 2.PCC03SAAN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	207187 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 207187 pcs

Reference Price (In US Dollars)

1 pcs: $0.166

10 pcs: $0.156

100 pcs: $0.12

500 pcs: $0.104

1000 pcs: $0.086

5000 pcs: $0.075

10000 pcs: $0.075

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.166

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PCC03SAAN

Part Number	PCC03SAAN	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER .100" 3POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	207187 pcs	Data sheet	1.PCC03SAAN.pdf 2.PCC03SAAN.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	-	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.450" (11.43mm)	Other Names	PCC03SAAN-ND S9704
Operating Temperature	-65°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 3 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	-
