PBC23SBAN

Sullins Connector SolutionsSullins Connector Solutions

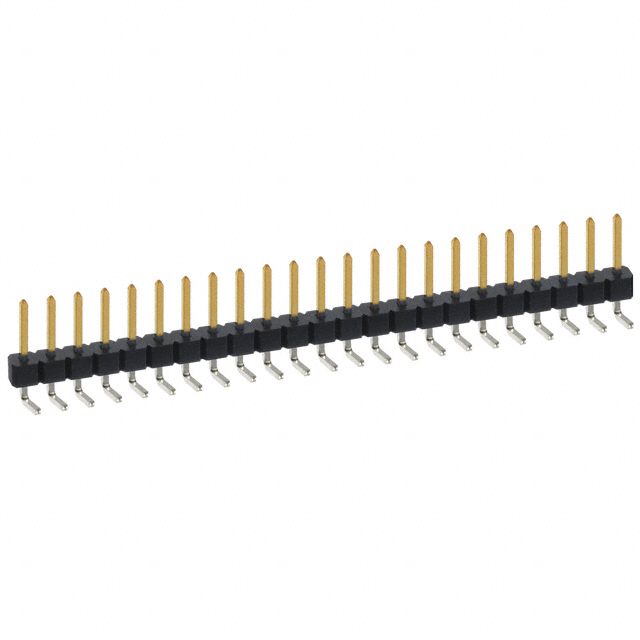

PBC23SBAN Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PBC23SBAN
Manufacturer/Brand: Sullins Connector Solutions
Product description CONN HEADER .100 SINGL R/A 23POS
Datasheets: PBC23SBAN.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 52898 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 52898 pcs
Reference Price (In US Dollars)
1 pcs
$0.715
10 pcs
$0.641
100 pcs
$0.528
500 pcs
$0.417
1000 pcs
$0.358
5000 pcs
$0.327
10000 pcs
$0.314
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.715

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PBC23SBAN

Part Number PBC23SBAN Manufacturer Sullins Connector Solutions
Description CONN HEADER .100 SINGL R/A 23POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 52898 pcs Data sheet PBC23SBAN.pdf
Voltage Rating - Termination Solder
Style Board to Board or Cable Shrouding Unshrouded
Series - Row Spacing - Mating -
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Overall Contact Length - Other Names S1111E-23
Operating Temperature -65°C ~ 125°C Number of Rows 1
Number of Positions Loaded All Number of Positions 23
Mounting Type Through Hole, Right Angle Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polybutylene Terephthalate (PBT) Insulation Height 0.140" (3.56mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description Connector Header Through Hole, Right Angle 23 position 0.100" (2.54mm) Current Rating 3A
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.100" (2.54mm)
Contact Length - Mating 0.230" (5.84mm) Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 10.0µin (0.25µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header, Breakaway
Applications -
