Sullins Connector Solutions

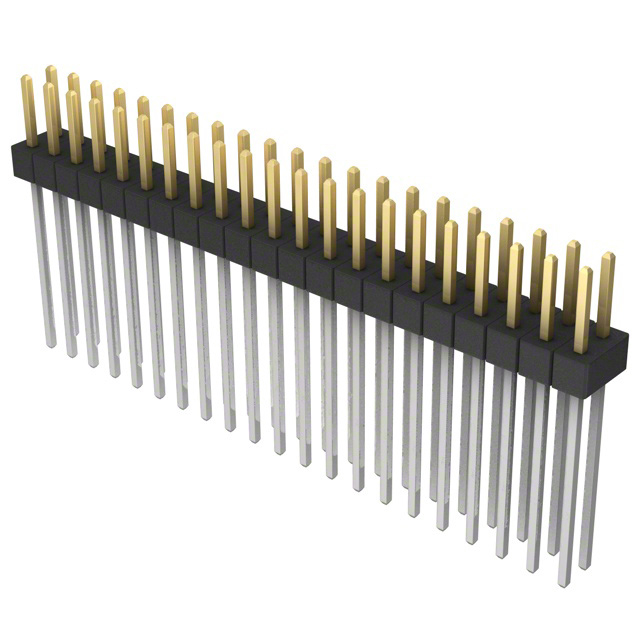

| Part Number | PBC21DAFN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL STR 42POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15221 pcs | Data sheet | 1.PBC21DAFN.pdf2.PBC21DAFN.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.950" (24.13mm) | Other Names | S2061E-21 |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 42 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 42 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.620" (15.75mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
